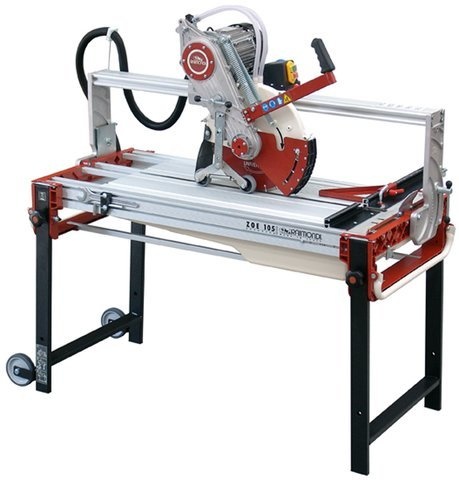

Raimondi Zoe 105A Electric wet Saw

Zoe 105A 3hp

For cutting granite, marble, porcelain, single and double fired, bricks, cement, etc

Straight, 45° bevel (Jolly) & plunge cuts.

Maximum length of cut: 105 cm.

Maximum thickness of cut: 120 mm.

Maximum blade diameter Ø 360 mm; smallest blade diameter Ø 300 mm.

Adjustable cutting depth.

Tilting motor assembly for bevel cuts from 0° to 45°.

Belt driven system optimizes motor torque and cutting capacity. Gear ratio of motor to disc 1,4 ÷ 1. Drive belt type poly V.

Cast and extruded aluminium framework.

Easy-to-remove polypropylene tank for easy cleaning. Capacity: 38 ltr.

Heavy duty water pump and (2) jet nozzles provide superior blade cooling.

Sliding motor assembly with cast aluminium housing provided with 4 re-adjustable pulleys (double bearings). Extruded aluminium rail.

Re-adjustable square for long lasting precision.

Telescopic legs provided with safety device to prevent collapsing.

Pivoting blade guard remains parallel with tile to ensure maximum cutting depth.

Floating blade guard remains in contact with tile to provide extra safety during operation.

Equipped with: segmented diamond disc Ø 360 mm. Wheels kit for easy transport. Key kit, wrench, manual.
